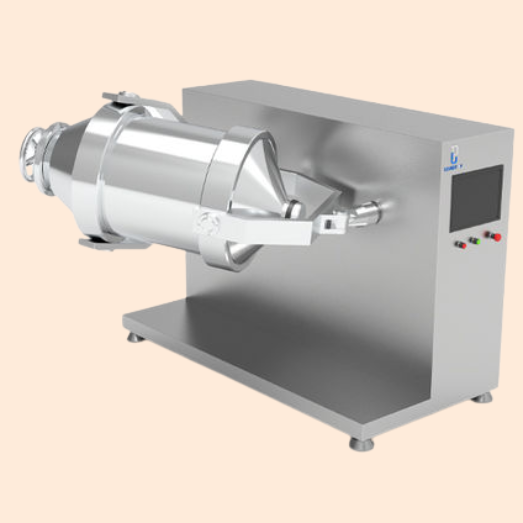

3D Mixer
3D Mixer
For achieving uniform mixing of powders with
varying densities and particle sizes, look no
further than the PTU series 3D Mixer from Align.
From dry-to-wet to wet-to-wet mixtures, this
blender ensures homogeneous blends with
precision.
Trusted 3D Mixer Manufacturer – Align Industry
Align Industry is a leading 3D Mixer manufacturer , offering advanced mixing solutions for uniform blending of dry powders and granules in pharmaceutical, chemical, and food industries.
Key Highlights:
- '
- Multi-directional mixing for superior homogeneity
- Ideal for heat-sensitive and delicate materials
- Compact design with low noise operation
- Easy to clean and GMP-compliant
3D Mixer Manufacturer
Align Industry is a prominent 3D Mixer Manufacturer in India, delivering cutting-edge mixing solutions for precise and uniform blending of dry powders, granules, and delicate materials. Also known as three-dimensional mixers or multi-directional motion mixers, these machines offer unmatched mixing efficiency without material degradation.
Our 3D mixers are designed to meet the stringent standards of pharmaceutical, food, chemical, cosmetic, and research laboratories, where precision, hygiene, and homogeneity are critical.
Key Features of Align’s 3D Mixers:
- Three-Dimensional Movement – Ensures 100% uniform mixing without dead zones
- Low RPM, High Efficiency – Preserves particle structure
- Stainless Steel Construction (SS304 / SS316) – GMP & food-grade compliant
- Dust-Free Loading and Discharge System
- Custom Capacity Range – From 5L for labs to 1000L+ for production
- Safety Interlocks and Timer Controls
- Easy to Clean and Maintain
The unique tumbling and swinging action of the 3D mixer eliminates the need for internal agitators or blades, making it ideal for fragile, expensive, or sensitive formulations.
Applications of 3D Mixer:
- Pharmaceuticals – API blending, excipients, capsule powder mixing
- Food and Nutraceuticals – Protein powders, spices, herbal blends
- Cosmetics – Talcum, compact powder, facial formulations
- Chemicals & Pigments – Color additives, fine powders
- Laboratories – Small-batch, R&D mixing
These mixers are the top choice when uniformity, consistency, and contamination-free mixing are non-negotiable.
| Model | Capacity(liter) | Operation Volume, (liter) | Power(kW) | Speed of Mixing Can (rpm) | W (mm) | H (mm) | Weight (kg) | L (mm) |
|---|---|---|---|---|---|---|---|---|
| AIHSM-10 | 0 | 6 | 2.2 | 381 | 1.1 | 1,500 | ||
| AIHSM-50 | 50 | 30 | 4 | 288 | 1.1 | 1,500 | ||
| AIHSM-100 | 100 | 60 | 5.5 | 277 | 1.5 | 1,500 | ||
| AIHSM-200 | 200 | 120 | 7.5 | 193 | 3 | 1,500 | ||
| AIHSM-300 | 300 | 180 | 11 | 176 | 4 | 1,500 | ||
| AIHSM-400 | 400 | 240 | 15 | 176 | 5.5 | 1,500 | ||
| AIHSM-600 | 600 | 360 | 22 | 149 | 5.5 | 1,500 | ||
| AIHSM-800 | 800 | 480 | 30 | 124 | 7.5 | 1,500 |
Question & answers
Frequently Asked Questions ?
A 3D mixer works by rotating and tumbling the mixing vessel in three dimensions simultaneously—ensuring complete material movement in all directions for uniform results without the use of blades.
3D mixers offer gentle mixing, no dead zones, zero material loss, and no particle breakage, which is ideal for high-value or sensitive powders.
No, 3D mixers are specifically designed for dry powders and free-flowing granules. They are not suitable for semi-solids or liquids.
Yes. We manufacture GMP-compliant 3D mixers with documentation, mirror-polished interiors, and validation support for regulated industries.
Absolutely. We offer lab-scale 3D mixers from 5L and go up to industrial-scale models of 1000L and above, depending on your batch size needs.
